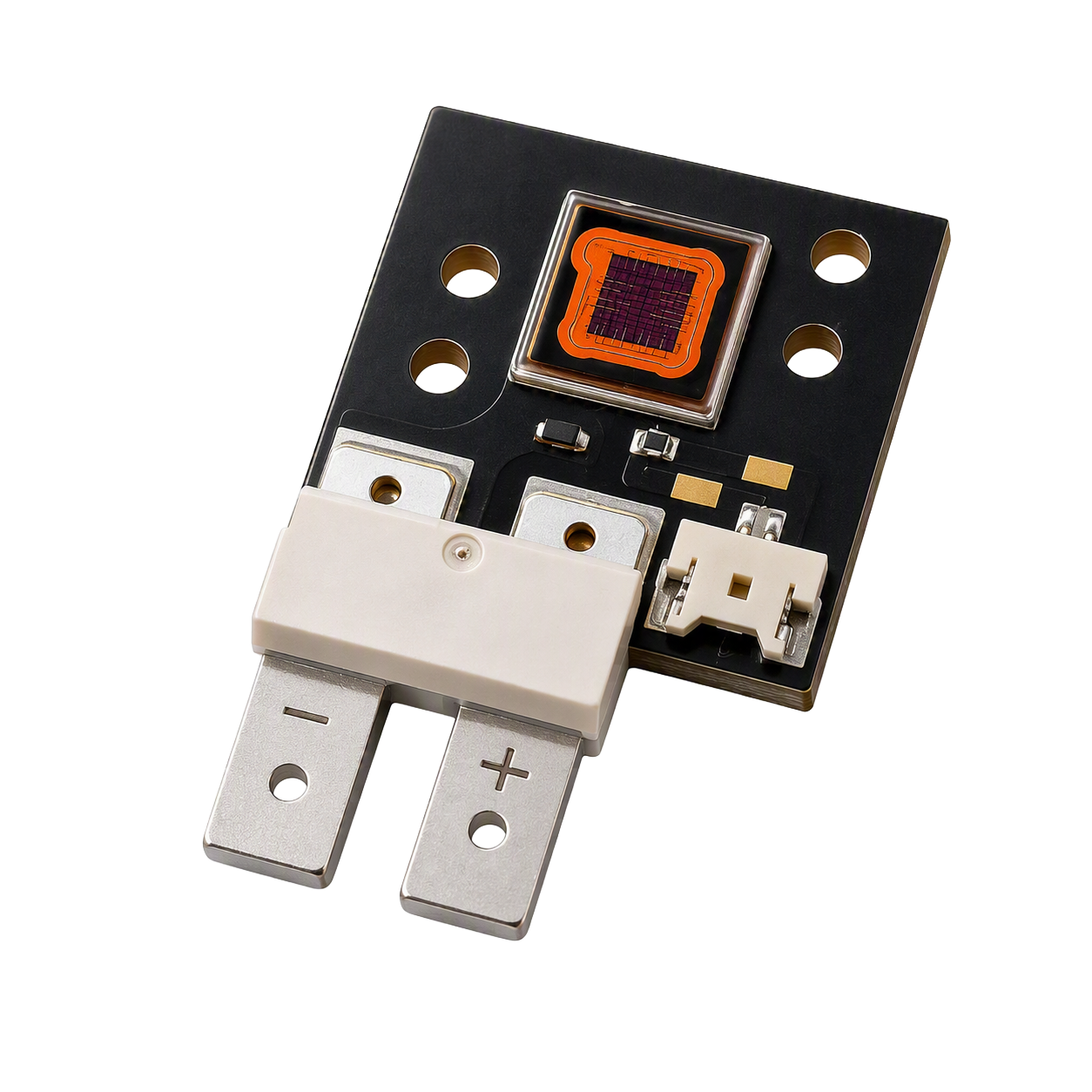

REVOX COB LED – 405nm, 12-Chip High Power UV Emitter
REVOX COB LED – 405nm, 12-Chip High Power UV Emitter
Couldn't load pickup availability
REVOX COB LED – 405nm, 12-Chip High Power UV Emitter
Description
The REVOX 405nm High Power COB LED delivers high radiant flux and industrial-grade thermal reliability in a compact 28.0 × 26.8 × 5.7mm package. Built with 12 high-density LED chips and an integrated NTC thermistor for real-time temperature monitoring, this LED is rated for forward currents up to 24A and power dissipation up to 94.8W — giving it substantial headroom for demanding sterilization, exposure, resin curing, and machine vision applications. Its 15nm spectral half-width ensures stable, precise 405nm output, while a wide -40°C to 85°C operating range supports reliable performance in harsh industrial environments.
Specifications
- Model Number: 405L-120D-12C-2827COB-01
- Product Type: 405nm High Power COB LED
- Peak Wavelength: 405nm (Typ. 405nm)
- Package Size: 28.0 × 26.8 × 5.7mm
- Number of Chips: 12
- Emitting Area: 3.55 × 4.75mm
- Radiant Flux: Typ. 17.4W (Min. 16.5W / Max. 25.0W) at IF = 9A
- Forward Voltage: Typ. 3.65V at IF = 9A
- Max Forward Current: 24A
- Max Power Dissipation: 94.8W
- Spectral Half-Width: 15nm
- Viewing Angle: 120°
- Operating / Storage Temperature: -40°C to 85°C
- Built-in NTC Thermistor: 10kΩ (for thermal monitoring)
Applications
- Sterilization
- Exposure
- Machine Vision Systems
- Resin Curing
Please refer to the downloadable datasheet for maximum ratings, electrical and optical characteristics, typical characteristic curves, and outline/circuit information.
