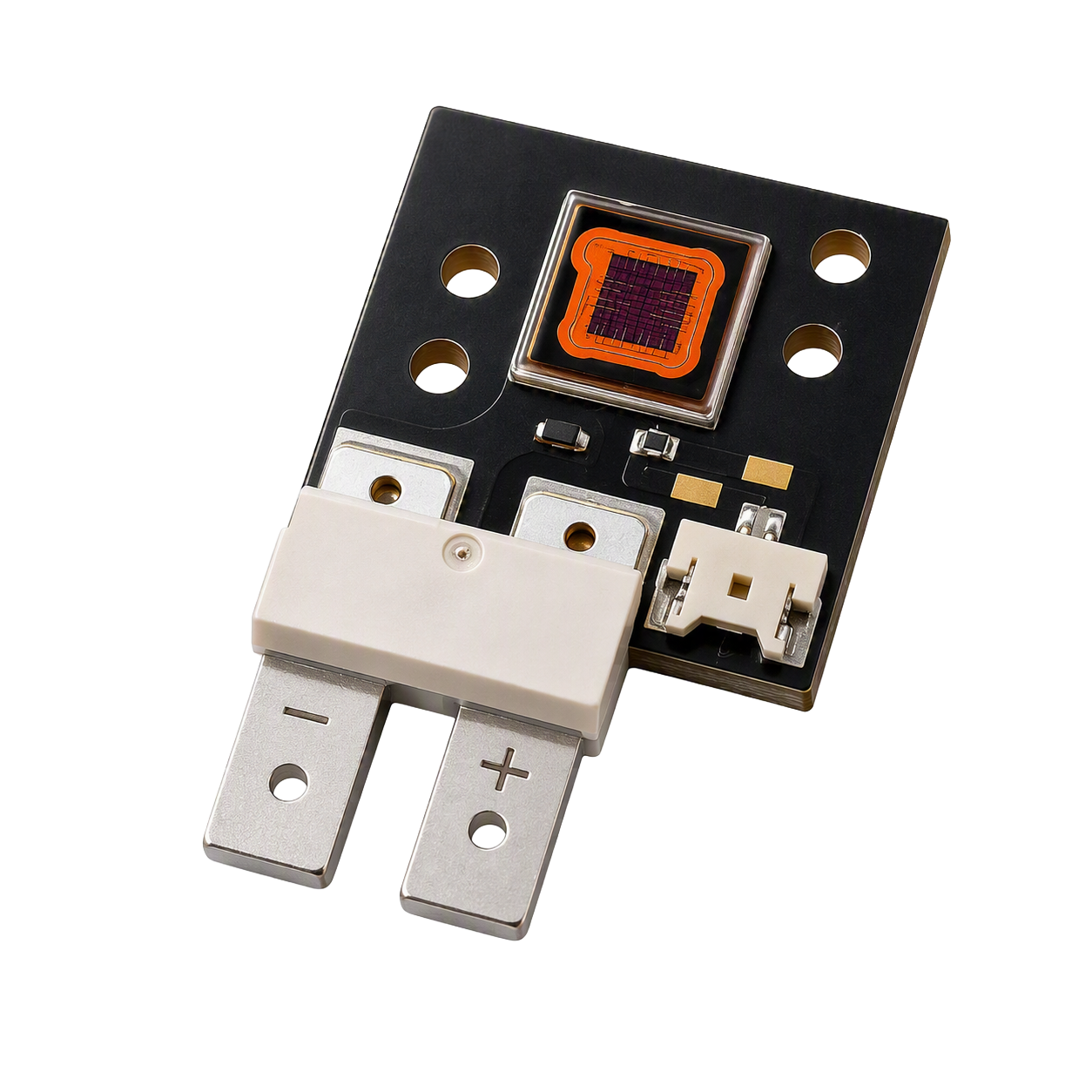

REVOX COB LED – 1550nm, 16-Chip High Power NIR Emitter
REVOX COB LED – 1550nm, 16-Chip High Power NIR Emitter
Couldn't load pickup availability
REVOX COB LED – 1550nm, 16-Chip High Power NIR Emitter
Description
The REVOX 1550nm High Power COB LED delivers high radiant flux and industrial-grade thermal reliability in a compact 28.0 × 26.8 × 3.2mm package. Built with 16 high-density LED chips and an integrated NTC thermistor for real-time temperature monitoring, this LED is rated for forward currents up to 16A and power dissipation up to 27.2W — giving it substantial headroom for demanding machine vision applications. Its narrow 138nm spectral half-width ensures stable, precise 1550nm NIR output, while a wide -40°C to 100°C operating range supports reliable performance in harsh industrial environments.
Specifications
- Model Number: 1550L-120D-16C-2827COB-01
- Product Type: 1550nm High Power COB LED
- Peak Wavelength: 1550nm (Typ.)
- Package Size: 28.0 × 26.8 × 3.2mm
- Number of Chips: 16
- Emitting Area: 4.5 × 4.5mm
- Radiant Flux: Typ. 2.17W (Min. 1.55W / Max. 3.00W) at IF = 16A
- Forward Voltage: Typ. 1.2V (Min. 0.7V / Max. 1.7V) at IF = 16A
- Max Forward Current: 16A
- Max Power Dissipation: 27.2W
- Spectral Half-Width: 138nm
- Viewing Angle: 120°
- Operating / Storage Temperature: -40°C to 100°C
- Built-in NTC Thermistor: 10kΩ (for thermal monitoring)
Applications
- Machine Vision Systems
Please refer to the downloadable datasheet for maximum ratings, electrical and optical characteristics, typical characteristic curves, and outline/circuit information.
