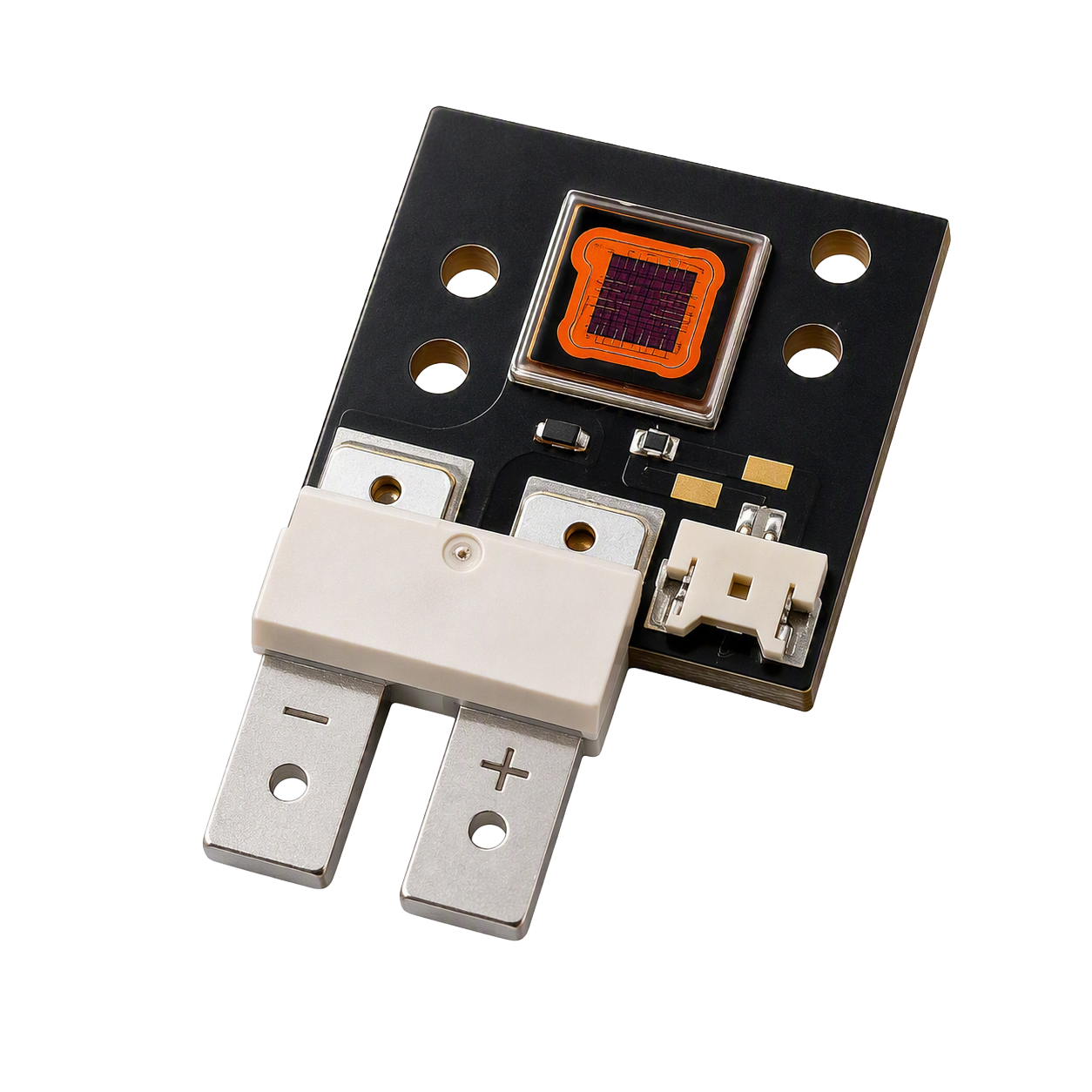

REVOX COB LED – 740nm, 16-Chip High Power NIR Emitter
REVOX COB LED – 740nm, 16-Chip High Power NIR Emitter
Couldn't load pickup availability
REVOX COB LED – 740nm, 16-Chip High Power NIR Emitter
Description
The REVOX 740nm High Power COB LED delivers high radiant flux and industrial-grade thermal reliability in a compact 28.0 × 26.8 × 3.2mm package. Built with 16 high-density LED chips and an integrated NTC thermistor for real-time temperature monitoring, this LED is rated for forward currents up to 16A (32A pulse) and power dissipation up to 49.6W — giving it substantial headroom for demanding machine vision and inspection applications. Its narrow 36nm spectral half-width ensures stable, precise 740nm NIR output, while a wide -40°C to 85°C operating range supports reliable performance in harsh industrial environments.
Specifications
- Model Number: 740L-120D-16C-2827COB-01
- Product Type: 740nm High Power COB LED
- Peak Wavelength: 740nm (Typ.), 730–750nm range
- Package Size: 28.0 × 26.8 × 3.2mm
- Number of Chips: 16
- Emitting Area: 4.8 × 4.8mm
- Radiant Flux: Typ. 15.09W (Min. 12.07W / Max. 20.00W) at IF = 16A
- Forward Voltage: Typ. 2.6V (Min. 2.1V / Max. 3.1V) at IF = 16A
- Max Forward Current: 16A (32A pulse)
- Max Power Dissipation: 49.6W
- Thermal Resistance: 0.8°C/W
- Spectral Half-Width: 36nm
- Viewing Angle: 120°
- Operating / Storage Temperature: -40°C to 85°C
- Built-in NTC Thermistor: 10kΩ (for thermal monitoring)
Applications
-Machine Vision Systems
Please refer to the downloadable datasheet for maximum ratings, electrical and optical characteristics, typical characteristic curves, and outline/circuit information.
