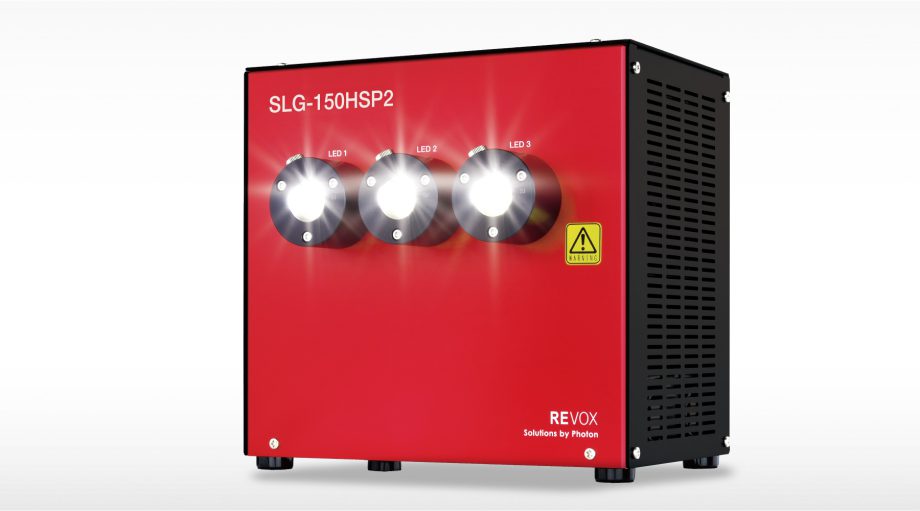

REVOX SLG-150HSP2 - Pulsed Fiber Optic Illuminator with Three White LEDs

REVOX SLG-150HSP2 - Pulsed Fiber Optic Illuminator with Three White LEDs

Description

The REVOX SLG-150HSP2 is a pulse-dedicated fiber optic illuminator with three white LED channels in one housing, switched fast enough that a single camera can image three optical setups in sequence at one station. The minimum pulse width is 3 µs, and the unit can run from its own internal trigger at a set period or follow an external trigger, including a one-trigger one-scan mode and a one-trigger n-scan mode, each with configurable ON WAIT delay and LED ON time. Maximum luminous flux is 4,128 to 5,076 lumens depending on the LED specification. For applications that need mixed colors instead of three white channels, REVOX supplies the SLG-150HSP3. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: pulse-dedicated LED fiber optic illuminator with three white LED channels
• LED colors: white, white, white (WWW)
• Maximum luminous flux: 4,128-5,076 lumens, depending on the LED specification
• Minimum pulse width: 3 µs
• Trigger modes: internal trigger at a set period with ON WAIT and LED ON timing, external trigger in one-trigger one-scan mode using inputs TRIG1 to TRIG3, and external trigger in one-trigger n-scan mode using TRIG1
• Compatible fiber bundle diameter: fiber OF diameter Ø8-14 mm
• Dimming range and resolution: 50-100% at 1,024 levels
• Dimming control: Ethernet
• Fault detection: LED overtemperature and fan speed error
• Input power: AC 100-240 V, 50/60 Hz
• Power consumption: 250 VA typical at maximum light
• Withstand voltage (input to output, input to FG): AC 1,500 V for 1 minute with a cutoff current of 10 mA or less, DC 500 V for 1 minute at 20 MΩ or above
• Operating environment: 5-40 °C, 20-80 %RH, no condensation
• Storage environment: -15-60 °C, 20-80 %RH, no condensation
• Expected LED life: 30,000 hours, defined as the time until illuminance falls to 70%; this is a reference value, not a warranty period
• LED replacement: handled by returning the unit to the factory
• Drive method: constant current; forced cooling by fan
• Connectors: AC inlet, 3-pin EN60320-1 C14 type x 1; Ethernet dimming input, RJ-45; trigger input, D-sub 9 socket
• Housing: aluminum alloy, anodized; mass 5.5 kg
• Compliance: RoHS and REACH compliant, PSE conforming; CE marking with safety standard EN61010-1 and EMC standards EN61000-6-2 and EN61000-6-4

System components

• Illuminator, ordered as SLG-150HSP2-①-②: ① LED colors (white, white, white = WWW), ② compatible fiber bundle diameter (Ø8-14 mm = M)
• Light guide: selected separately, one per channel in most installations. Straight, ring, and line light guides are configured to the application, and light guides are not included with the illuminator
• Ferrule adaptor: selected separately to match the light guide dimensions, with custom ferrule specifications available
• Supplied accessories: instruction manual and a 2 m three-pin grounded AC cord rated at 125 V, 7 A maximum

Applications

• Imaging three optical setups with one camera at a single station, using three white channels in sequence
• Combining bright-field, dark-field, and transmitted illumination on the same workpiece
• High-speed inspection synchronized to a camera or encoder trigger, at a 3 µs minimum pulse width
• Free-running inspection cells that need no external trigger source, using the internal trigger mode
• Consolidating three separate illuminators into one unit where station space is limited

Specifications above are taken from the REVOX product documentation. Tell us the three illumination conditions you need, the trigger source and timing, and the light guide shape for each channel, and we will confirm the configuration.

Ordering and sourcing information

How this product is configured

The SLG-150HSP2 is supplied as a system rather than a single part number. All three channels are white, each channel normally needs its own light guide and ferrule adaptor, and the dimming range is 50-100% rather than 0-100% because this is a pulse-dedicated design. The illuminator and the light guides are therefore specified together, and we work through the trigger scheme with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single illuminator with its light guides is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the configuration and on component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on trigger modes, pulse timing, Ethernet control, and light guide selection are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the light guide and ferrule configuration. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
