Description

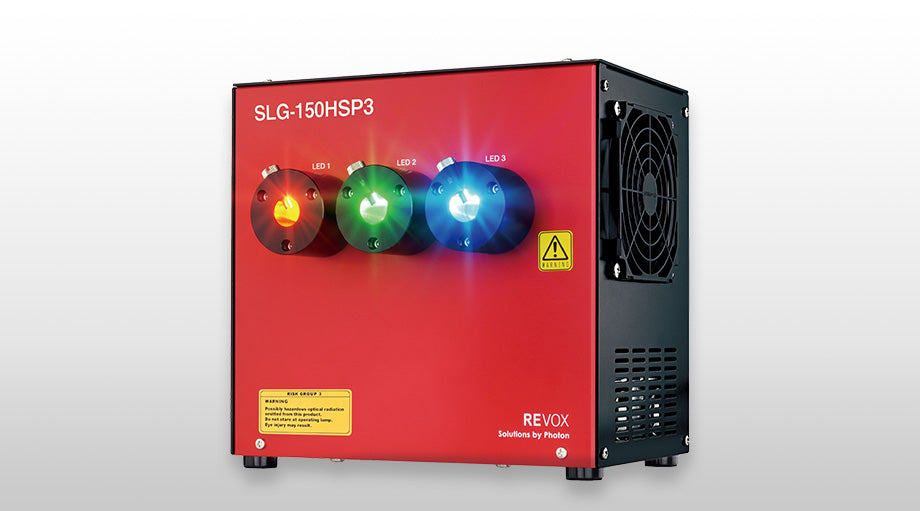

The REVOX SLG-150HSP3 is a fiber optic illuminator built specifically for pulse control, with three LED channels in one housing. Any three of four colors can be specified - red, green, blue, and white - so one unit can drive three optical setups in sequence and a single camera can capture three imaging conditions at the same station. The minimum pulse width is 3 µs and dimming is 10-bit over a 50-100% range, controlled over Ethernet, with trigger input on a D-sub 9 connector. For applications that need three white channels rather than mixed colors, REVOX supplies the SLG-150HSP2 instead. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: pulse-dedicated LED fiber optic illuminator with three LED channels
• LED colors: any three of red, green, blue, and white. A white, white, white configuration is supplied as the SLG-150HSP2
• Minimum pulse width: 3 µs
• Compatible fiber bundle diameter: Ø8-14 mm
• Beam angle: 30° full angle
• Dimming range and resolution: 50-100% at 1,024 levels
• Dimming control: Ethernet
• Fault detection: LED overtemperature and fan speed error
• Input power: AC 100-240 V, 50/60 Hz
• Power consumption: 250 VA typical at maximum light
• Withstand voltage (input to output, input to FG): AC 1,500 V for 1 minute with a cutoff current of 10 mA or less, DC 500 V for 1 minute at 20 MΩ or above
• Operating environment: 5-40 °C, 20-80 %RH, no condensation
• Storage environment: -15-60 °C, 20-80 %RH, no condensation
• Expected LED life: 30,000 hours, defined as the time until illuminance falls to 70%; this is a reference value, not a warranty period
• LED replacement: handled by returning the unit to the factory
• Drive method: constant current; forced cooling by fan
• Connectors: AC inlet, 3-pin EN60320-1 C14 type x 1; Ethernet dimming input, RJ-45; trigger input, D-sub 9 socket
• Housing: aluminum alloy, anodized; mass 5.5 kg
• Compliance: RoHS and REACH compliant, PSE conforming; CE marking with safety standard EN61010-1 and EMC standards EN61000-6-2 and EN61000-6-4

System components

• Illuminator, ordered as SLG-150HSP3-①-②: ① LED colors, three selected from white = W, red = R, green = G, blue = B, with X marking an unused channel, ② compatible fiber bundle diameter (Ø8-14 mm = M)
• Light guide: selected separately, one per channel in most installations. Straight, ring, and line light guides are configured to the application, and light guides are not included with the illuminator
• Ferrule adaptor: selected separately to match the light guide dimensions, with custom ferrule specifications available
• Supplied accessories: instruction manual and a 2 m three-pin grounded AC cord rated at 125 V, 7 A maximum

Applications

• Capturing three imaging conditions at one station with a single camera, by pulsing each channel in turn
• Multi-wavelength inspection where defect contrast differs by color, switched frame to frame
• High-speed inspection synchronized to a camera trigger at a 3 µs minimum pulse width
• Consolidating three separate illuminators into one unit where cabinet and station space is limited
• Inspection cells controlled over Ethernet from a PC or vision controller

Specifications above are taken from the REVOX product documentation. Tell us the three conditions you need to image, the trigger timing, and the light guide shape for each channel, and we will confirm the color combination, light guide, and ferrule configuration.

Ordering and sourcing information

How this product is configured

The SLG-150HSP3 is supplied as a system rather than a single part number. The three LED colors are fixed when the unit is built and cannot be changed in the field, and each channel normally needs its own light guide and ferrule adaptor, so the illuminator and the light guides are specified together. Note also that the dimming range is 50-100% rather than 0-100%, because this is a pulse-dedicated design. We work through the configuration with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single illuminator with its light guides is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the color combination, the configuration, and component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on color combination, trigger timing, pulse width, Ethernet control, and light guide selection are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the color combination and on the light guide and ferrule configuration. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
