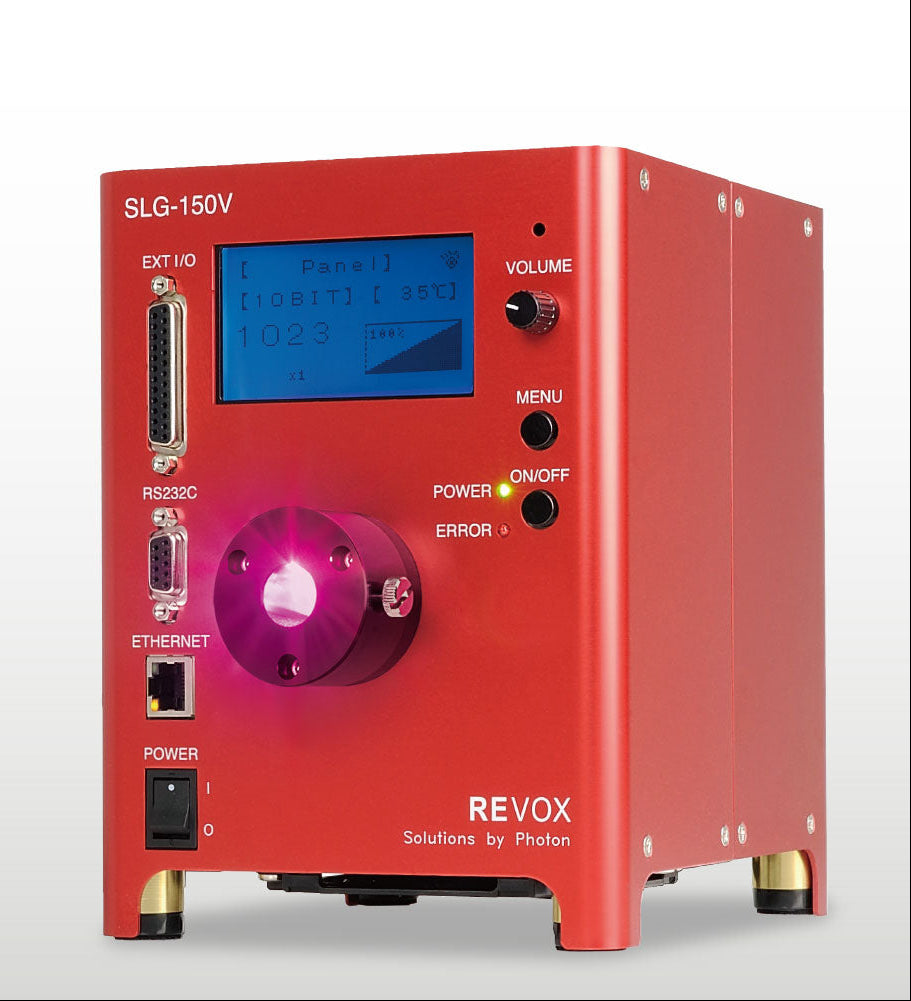

REVOX SLG-150V-UV - UV Fiber Optic Illuminator (365, 385, 405 nm)

REVOX SLG-150V-UV - UV Fiber Optic Illuminator (365, 385, 405 nm)

Description

The REVOX SLG-150V-UV is a near-ultraviolet fiber optic illuminator built around UV LEDs developed by REVOX, for fluorescence observation and for fine defect inspection where UV excitation produces contrast that visible light cannot. Three peak wavelengths are available as standard, 365 nm, 385 nm, and 405 nm, so the excitation can be matched to the fluorescent material or the resin being inspected. REVOX publishes an expected LED life of 30,000 hours, more than twenty times that of a UV lamp, which removes the lamp replacement and warm-up cycle from the inspection process. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: near-ultraviolet LED fiber optic illuminator
• LED peak wavelength, typical: 365 nm, 385 nm, or 405 nm, specified at the time of order
• Compatible fiber bundle diameter: Ø8-14 mm
• Beam angle: 30° or 40° full angle, specified at the time of order
• Expected LED life: 30,000 hours, published by REVOX as more than twenty times the life of a UV lamp; this is a reference value, not a warranty period
• Drive method: constant current, with dimming by current control
• Input power: AC 100-240 V (±10%), 50/60 Hz
• Power consumption, typical: 170 VA
• Earth leakage current: 0.5 mA max at AC 240 V, 60 Hz, 100% load
• Withstand voltage and insulation resistance (input to FG): AC 1,500 V for 1 minute with a 10 mA cutoff, DC 500 V at 20 MΩ or above
• Operating environment, indoor use only: 5-40 °C, 20-80 %RH, no condensation; altitude 2,000 m maximum, overvoltage category II, pollution degree 2
• Storage environment: -15-60 °C, 20-80 %RH, no condensation
• Cooling: forced cooling
• Photobiological safety: risk group 3. Appropriate eye and skin protection and interlocking are required in the installation
• Housing: aluminum alloy, anodized
• Mass: approximately 3.9 kg
• Compliance: RoHS compliant; CE marking with safety standard EN61010-1 and EMC standards EN61000-6-2, EN61000-6-4, and EN62311

System components

• Illuminator, ordered as SLG-150V-①-②③: ① peak wavelength (365 nm = 365, 385 nm = 385, 405 nm = 405), ② compatible fiber bundle diameter (Ø8-14 mm = M), ③ beam angle (30° = N, 40° = U)
• Light guide: selected separately. Straight, ring, and line light guides are configured to the application, and the light guide is not included with the illuminator. UV transmission depends on the light guide material, so the light guide is selected together with the wavelength
• Ferrule adaptor: selected separately to match the light guide dimensions, with custom ferrule specifications available
• Supplied accessories: instruction manual and a 2 m three-pin grounded AC cord

Applications

• Fluorescence observation and fluorescent penetrant inspection
• Fine defect inspection on resin, film, and coated surfaces, where UV excitation raises contrast
• Checking fluorescent markers, adhesives, and coatings for presence, coverage, and uniformity
• UV curing and exposure work at small spot sizes through a light guide
• Replacing UV lamps in existing inspection stations, to remove warm-up time and lamp replacement

Specifications above are taken from the REVOX product documentation. Tell us the fluorescent material or defect you are targeting, the working distance, and the camera and filter set, and we will confirm the wavelength, beam angle, light guide, and ferrule configuration. If you need wavelengths outside 365-405 nm, we also supply REVOX UV COB and SMD emitters at the component level.

Ordering and sourcing information

How this product is configured

The SLG-150V-UV is supplied as a system rather than a single part number. The peak wavelength and the beam angle are fixed when the unit is built, and the light guide has to transmit the chosen wavelength, so the illuminator, light guide, and ferrule adaptor are specified together. We work through the configuration with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single illuminator with its light guide is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the configuration and on component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on excitation wavelength, light guide transmission, beam angle, and UV safety classification are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the wavelength, beam angle, light guide, and ferrule configuration. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
