Description

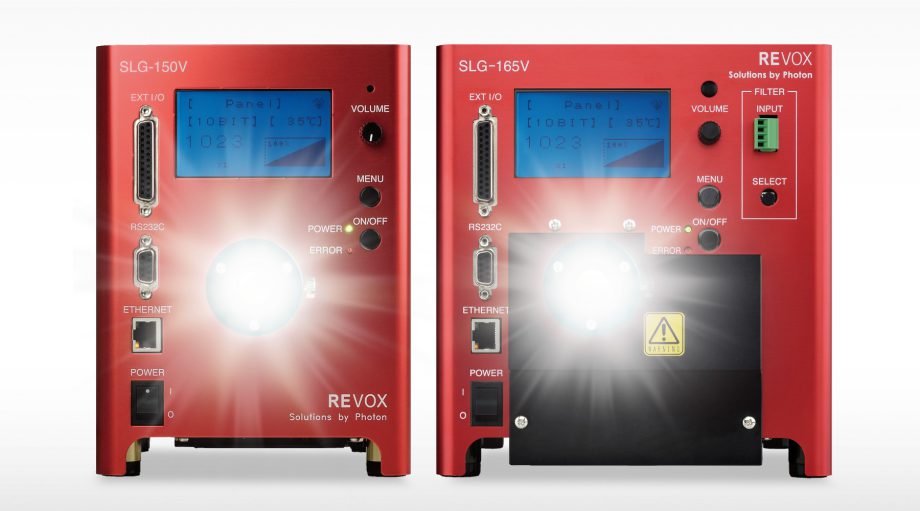

The REVOX SLG-150V-X and SLG-165V-X are the high-output versions of the SLG-150V and 165V white fiber optic illuminators, built for inspection stations where the existing LED fiber source simply does not deliver enough light. REVOX publishes an output of twice that of a 250 W metal halide source, which is the comparison that matters when a station is being converted from a discharge lamp. Two white types are standard: CWX for general inspection and DWX with high color rendering for color judgement and for operators working from the image. Light-output feedback is available on the FB models, which holds the set output as the LED ages instead of letting illuminance drift away from the inspection threshold. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: high-output white LED fiber optic illuminator
• Models: SLG-150V-X and SLG-165V-X, each available with light-output feedback as the FB version
• LED color: white, with CWX as the standard type and DWX as the high color rendering type
• Output: twice that of a 250 W metal halide light source, as published by REVOX
• Compatible fiber bundle diameter: fiber OF diameter Ø8-Ø14 mm
• Beam angle: 30° full angle
• Drive method: constant current, with dimming by current control
• Input power: AC 100-240 V (±10%), 50/60 Hz
• Power consumption, typical: 200 VA for the SLG-150V-X and 205 VA for the SLG-165V-X
• Inrush current, typical: 15 A at AC 100 V and 30 A at AC 200 V, at cold start
• Earth leakage current: 3.5 mA or less at AC 264 V, 60 Hz, no load
• Withstand voltage and insulation resistance (input to FG): AC 1,500 V for 1 minute with a 10 mA cutoff, DC 500 V at 20 MΩ or above
• Operating environment, indoor use only: 5-40 °C, 20-80 %RH, no condensation; altitude 2,000 m or below, overvoltage category II, pollution degree 2
• Storage environment: -15-60 °C, 20-85 %RH, no condensation
• Cooling: forced cooling
• Photobiological safety: risk group 3
• Housing: aluminum alloy, anodized; mass approximately 3.9 kg for the SLG-150V-X and approximately 5.1 kg for the SLG-165V-X
• Compliance: RoHS compliant and conforming to the Japanese Electrical Appliance and Material Safety Act; CE marking with safety standard EN61010-1 and EMC standards EN61000-6-2, EN61000-6-4, and EN62311

System components

• Illuminator, ordered as SLG-150V-X-①-②③, SLG-150VFB-X-①-②③, SLG-165V-X-①-②③, or SLG-165VFB-X-①-②③: ① LED color (standard white = CWX, high color rendering white = DWX), ② compatible fiber bundle diameter (Ø8-14 mm = M), ③ beam angle (30° = N)
• Light guide: selected separately. Straight, ring, and line light guides are configured to the application, and the light guide is not included with the illuminator
• Ferrule adaptor: selected separately to match the light guide dimensions, with custom ferrule specifications available. C-mount lenses and lenses for transmission lights are also available on request
• Supplied accessories: instruction manual and a 2 m three-pin grounded AC cord; filter retainers and retainer screws are supplied for filter positions that are not populated

Applications

• Inspection stations where the existing LED fiber source is too dim and the optical layout cannot be changed
• Converting 250 W metal halide stations to LED without losing intensity
• Color judgement and operator-assisted inspection, using the DWX high color rendering type
• High-magnification imaging through ring or straight light guides, where light is lost in the optics
• Long-run inspection with fixed thresholds, using the FB light-output feedback versions

Specifications above are taken from the REVOX product documentation. Tell us the illuminance you need at the workpiece, the working distance, and the current light source you are replacing, and we will confirm the model, white type, light guide, and ferrule configuration.
