Description

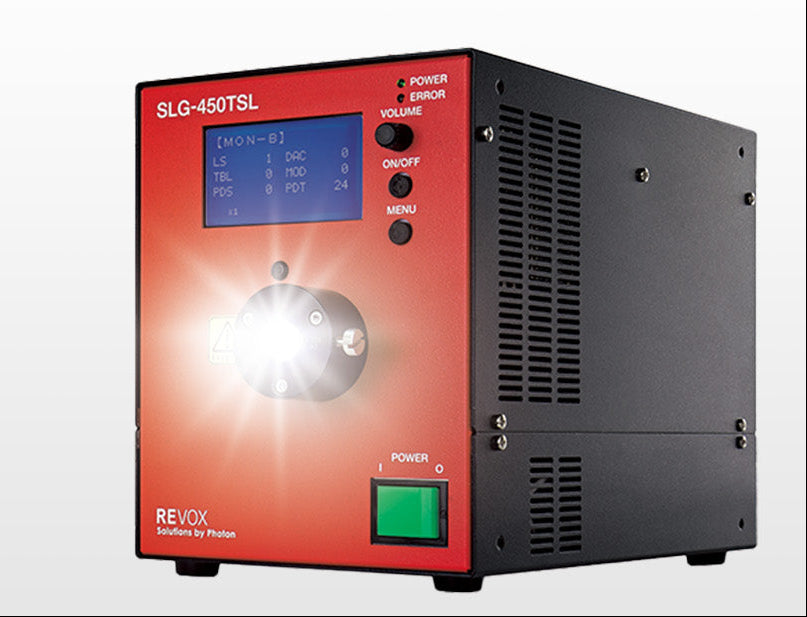

The REVOX SLG-450TSL carries red, green, and blue LEDs in a single fiber optic illuminator and mixes them into one output, which gives a spectrum that can be tuned to the material instead of accepting the fixed spectrum of a white source. REVOX publishes a converted illuminance of more than ten million lux based on its own measurement method, making this the brightest mixed-color source in the SLG series. A color-lock function keeps the mixing ratio fixed while the overall level is dimmed, so the color balance established during setup is not lost when the operator changes brightness. The SLG-450TSL supports steady and pulsed operation with high-speed strobe and high-speed dimming functions, while the SLG-450TSL-ST is the continuous-output version for applications that do not need pulsing. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: ultra-high-brightness mixed-color LED fiber optic illuminator with three LED channels
• Models: SLG-450TSL with high-speed strobe and high-speed dimming, and SLG-450TSL-ST without them
• LED colors: red 622 nm, green 520 nm, blue 450 nm
• Illuminance: more than 10,000,000 lx, published by REVOX as a converted value based on its own measurement method
• Compatible fiber bundle diameter: Ø8-Ø12 mm
• Beam angle: 30° full angle
• Drive method: constant current, with dimming by current control
• Dimming range and resolution: 0-100%, with 8-bit (256 levels) and 10-bit (1,024 levels) inputs
• Control inputs: manual dimming and Ethernet dimming
• Alarm outputs: temperature error, temperature warning, LED open error, LED short error, feedback error, and internal errors covering power supply fault, overcurrent, fan fault, and internal component overtemperature
• Input power: AC 100-240 V (±10%), 50/60 Hz
• Power consumption, typical: 435 VA at 100 V and 480 VA at 240 V for the SLG-450TSL; 420 VA at 100 V and 435 VA at 240 V for the SLG-450TSL-ST
• Inrush current, typical: 40 A at cold start
• Withstand voltage and insulation resistance (input to output, input to FG): AC 1,500 V for 1 minute with a 10 mA cutoff, DC 500 V at 20 MΩ or above
• Operating environment, indoor use only: 0-40 °C, 20-80 %RH, no condensation
• Storage environment: -10-60 °C, 20-80 %RH, no condensation
• Cooling: forced cooling by fan, with side intake and rear exhaust
• Expected LED life: 30,000 hours, defined as the time until illuminance falls to 70%; this is a reference value, not a warranty period
• Dimensions excluding protrusions: D 280 x W 155 x H 200 mm
• Mass: 6.0 kg or less for the SLG-450TSL, 5.6 kg or less for the SLG-450TSL-ST
• Housing: aluminum alloy with a semi-gloss leather-tone finish
• Compliance: RoHS compliant and conforming to the Japanese Electrical Appliance and Material Safety Act; CE marking with safety standards EN61010-1:2010+A1:2019 and EN62311:2008 and EMC standards EN61000-6-2 and EN61000-6-4

System components

• Illuminator, ordered as SLG-450TSL-①: ① pulse capability (pulse specification = blank, continuous-output specification = ST)
• Light guide: selected separately. Straight, ring, and line light guides are configured to the application, and the light guide is not included with the illuminator
• Ferrule adaptor: selected separately to match the light guide dimensions, with custom ferrule specifications available
• Supplied accessories: instruction manual, a 2 m three-pin grounded AC cord, and a plug for the monitor terminal block

Applications

• Inspection where contrast depends on wavelength, using a mixing ratio tuned to the material rather than a fixed white spectrum
• Color imaging that must stay color-stable while brightness is adjusted, using the color-lock function
• High-magnification inspection that needs extreme brightness through a fiber light guide
• Strobe and high-speed dimming applications synchronized to a camera, using the SLG-450TSL
• Continuous illumination at a fixed level, using the lower-cost SLG-450TSL-ST

Specifications above are taken from the REVOX product documentation. Tell us your material, working distance, camera, and whether you need pulsed or continuous output, and we will confirm the model, light guide, and ferrule configuration.

Ordering and sourcing information

How this product is configured

The SLG-450TSL is supplied as a system rather than a single part number. The pulse capability is fixed by the model you order, because the high-speed strobe and high-speed dimming functions cannot be added to an SLG-450TSL-ST afterwards. The illuminator, the light guide, and the ferrule adaptor are specified together, since the light guide determines the illuminance delivered at the workpiece, so we work through the configuration with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single illuminator with its light guide is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the configuration and on component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on color mixing, light guide selection, ferrule sizing, and strobe timing are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the model, the light guide, and the ferrule configuration. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
