REVOX SLG-600V2 / 600V2-FC - High-Output Fiber Optic Illuminator

REVOX SLG-600V2 / 600V2-FC - High-Output Fiber Optic Illuminator

Description

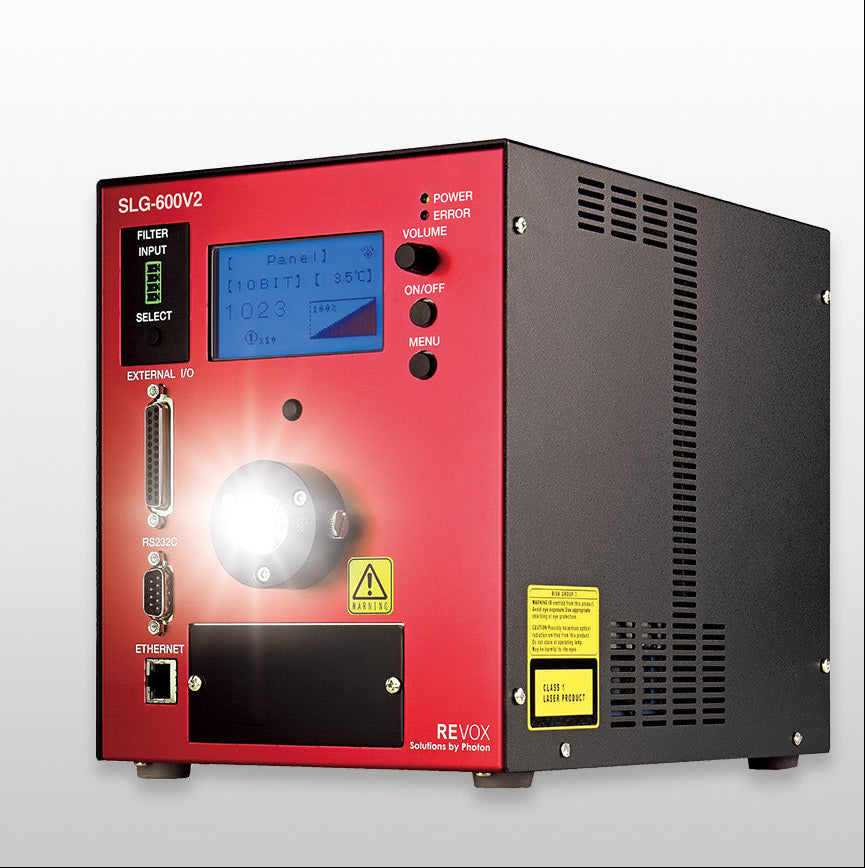

The REVOX SLG-600V2 is the highest-output fiber optic illuminator in the SLG series, developed as an LED replacement for xenon flash lamps in inspection systems. REVOX publishes an output increase of more than eleven times that of its conventional LED fiber sources, and a 40% increase in light output over the previous SLG-600 generation with lower fan noise. With dimming at 50% or above, the light switches on and off in 1 µs or less, so it can be used as a high-speed pulsed source as well as a continuous one, and the high dimmer system can store up to eight dimming levels with their own emission times and step through them on an internal or external trigger. Light-output feedback is standard, which holds the set output over a stabilization time of up to 23,000 hours. The SLG-600V2-FC variant adds an internal five-position filter changer for wavelength selection. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: ultra-high-output LED fiber optic illuminator with high-speed pulse and high-speed dimming functions
• Models: SLG-600V2 and SLG-600V2-FC, the latter with a built-in five-position filter changer
• Compatible fiber bundle diameter: Ø8-Ø14 mm
• Beam angle: 30° full angle
• LED color: white, correlated color temperature 5,500 K typical
• Response: 1 µs or less for on and off switching with dimming at 50% or above, measured on external trigger input at maximum light setting; published as reference data, not a guaranteed value
• Drive method: constant current, with dimming by current control; 1 channel
• Light-output feedback: standard. Setting the required stabilization time makes the unit calculate the maximum output it can hold for that period, with 23,000 hours published as the long-life reference condition
• Input power: AC 100-240 V (±10%), 50/60 Hz
• Power consumption, typical: 410 VA at 100 V input, 420 VA at 240 V input
• Inrush current, typical: 40 A at cold start
• Earth leakage current: 0.5 mA max at AC 240 V, 60 Hz, 100% load
• Withstand voltage and insulation resistance (input to output, input to FG): AC 1,500 V for 1 minute with a 10 mA cutoff, DC 500 V at 20 MΩ or above
• Operating environment, indoor use only: 0-40 °C, 20-80 %RH, no condensation; altitude 2,000 m maximum, AC overvoltage category II, pollution degree 2
• Storage environment: -15-60 °C, 20-85 %RH, no condensation
• Cooling: forced cooling
• Housing: aluminum alloy, anodized
• Mass: 6.6 kg or less for SLG-600V2, 6.9 kg or less for SLG-600V2-FC
• Compliance: RoHS compliant; CE marking with safety standards EN61010-1 and EN62311-2008 and EMC standards EN61000-6-2, EN61000-6-4, and EN50581-2012

System components

• Illuminator, ordered as SLG-600V2-①②: ① filter changer (fitted = FC, omitted = blank), ② filter misalignment detection option (fitted = S, omitted = blank)
• Light guide: selected separately. Straight, ring, and line light guides are configured to the application, and the light guide is not included with the illuminator
• Ferrule adaptor: selected separately to match the light guide dimensions, with custom ferrule specifications available for sizes outside the standard list
• Filters for the FC model: heat-resistant filters recommended by REVOX, changed by removing the front cover. Up to five are held in the changer, and the changer is controlled the same way as dimming
• Supplied accessories: instruction manual and a 2 m three-pin grounded AC cord; the FC model also includes five filter brackets and eighteen fixing screws

Applications

• Replacing xenon flash lamps in inspection systems that need LED life and stability without losing intensity
• High-speed pulsed illumination synchronized to a camera trigger, at 1 µs or less
• Sequential multi-condition imaging using up to eight stored dimming levels on one trigger chain
• Long-run inspection where output must stay constant for thousands of hours, using light-output feedback
• Wavelength-selective inspection and fluorescence work using the five-position filter changer
• Ring, line, and straight light guide illumination for high-magnification or transmitted-light inspection

Specifications above are taken from the REVOX product documentation. Illuminance figures published by REVOX are measured with a straight light guide of Ø8 mm bundle diameter and 1,000 mm length at maximum dimming, and are reference values rather than guaranteed values. Tell us your working distance, field size, camera, and trigger timing, and we will confirm the illuminator, light guide, and ferrule configuration.

Ordering and sourcing information

How this product is configured

The SLG-600V2 is supplied as a system rather than a single part number. The illuminator, the light guide, and the ferrule adaptor are specified together, because the light guide bundle diameter, length, and output shape determine the illuminance you actually get at the workpiece. The filter changer and the misalignment detection option are specified at the time of order and cannot be added later in the field, so we work through the configuration with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single illuminator with its light guide is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the configuration and on component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on light guide selection, ferrule sizing, pulse timing, filter options, and feedback settings are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the filter changer and detection options and on the light guide and ferrule configuration. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
