Description

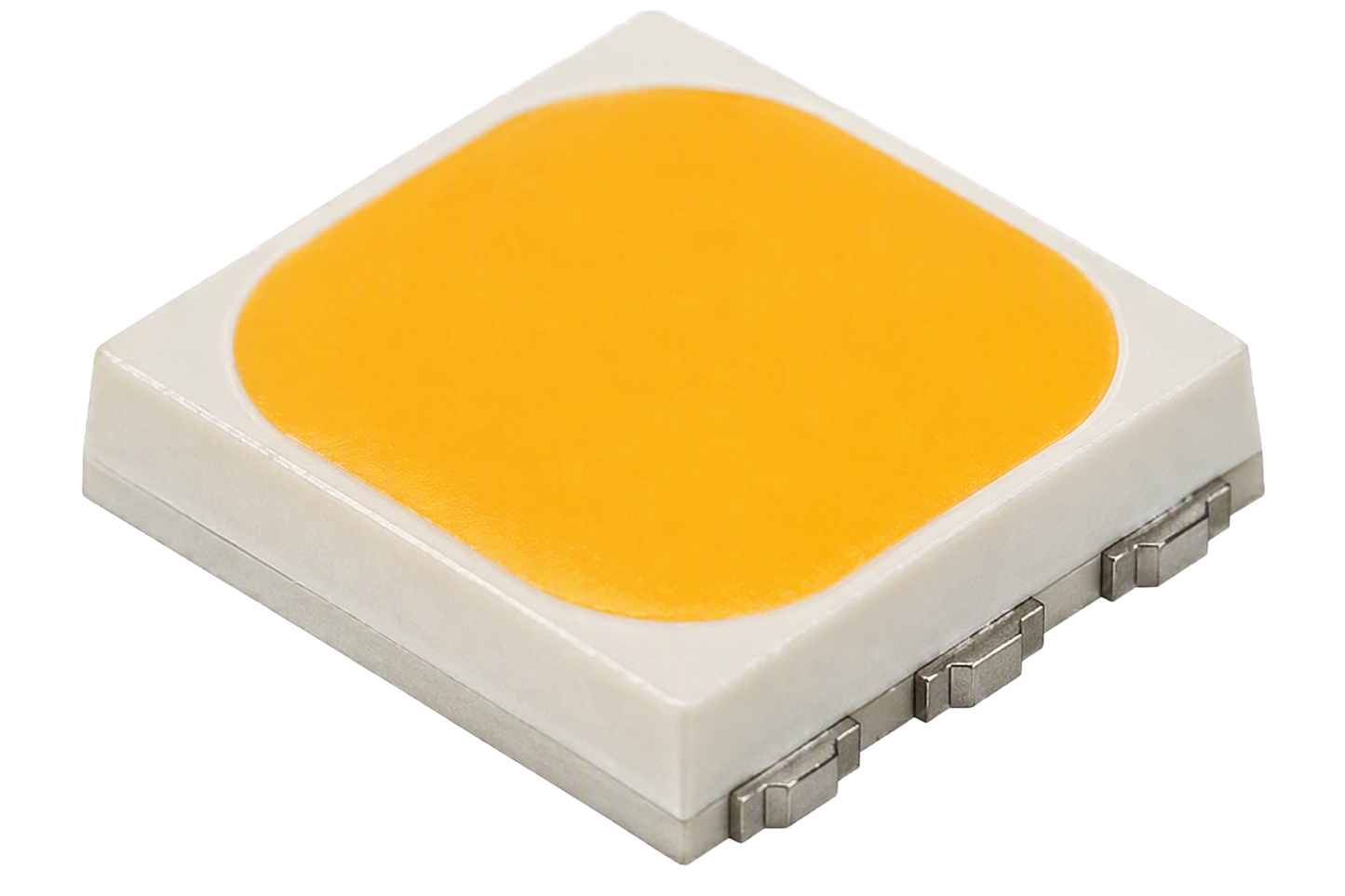

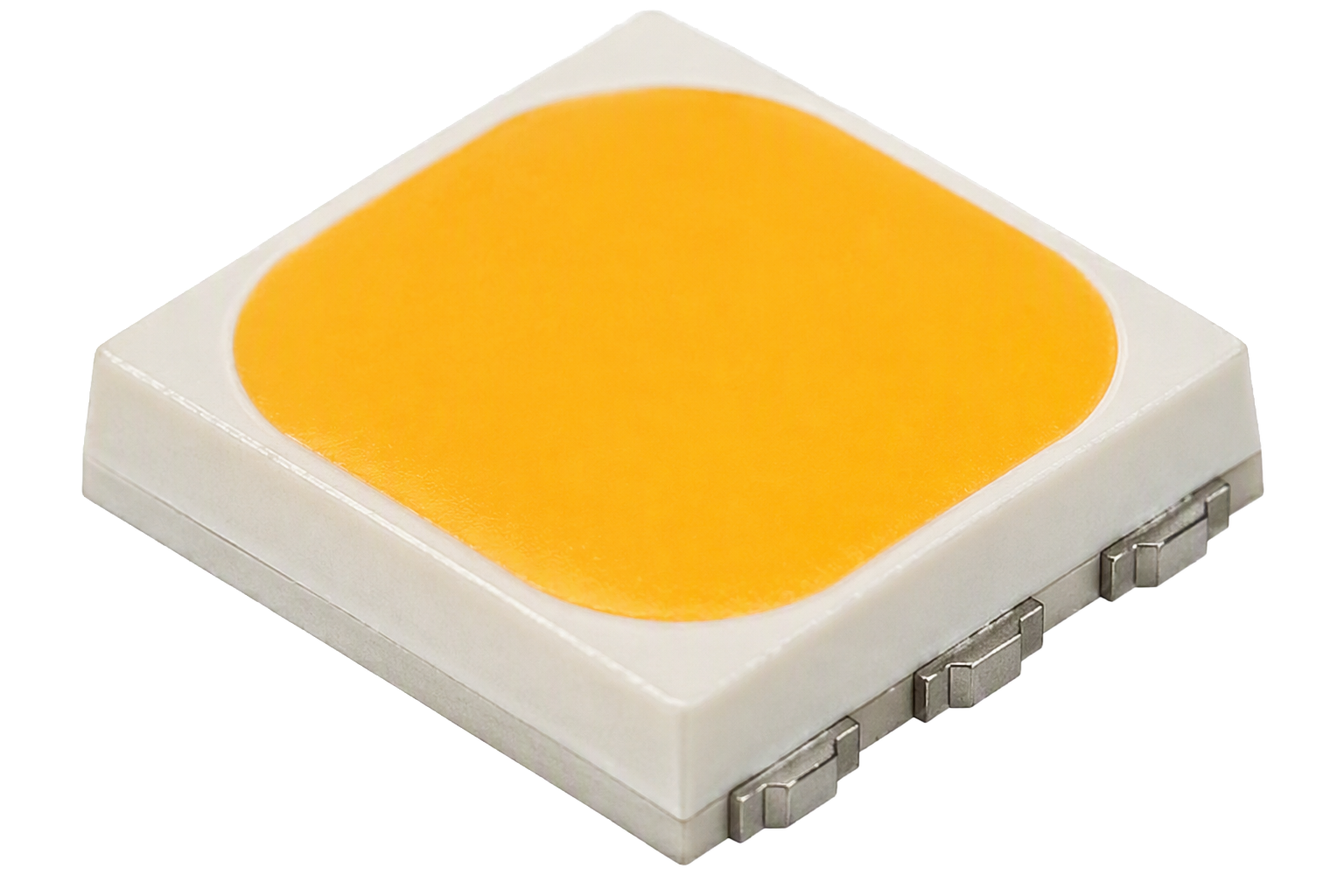

The REVOX 5050 SMD Broad Band LED delivers high luminous flux and broadband spectral output in a compact 5.0 × 5.4 × 1.0mm package. Built with 9 high-density LED chips and an integrated thermistor for real-time temperature monitoring, this LED is rated for forward currents up to 600mA and power dissipation up to 6.6W — giving it stable, reliable performance for demanding machine vision, reference light source, and optical analysis applications. Its broadband spectral output spanning roughly 350nm to 1000nm combined with a high 93 CRI ensures accurate, natural color rendering, while a wide -40°C to 85°C operating range supports reliable performance in harsh industrial environments.

Specifications

• Model Number: BBL-120D-9C-5050SMD-01
• Product Type: Broad Band LED
• Package Size: 5.0 × 5.4 × 1.0mm
• Number of Chips: 9
• Emitting Area: 4.5 × 4.5mm
• Luminous Flux: Typ. 130lm at IF=600mA
• Radiant Flux: Typ. 800mW at IF=600mA
• Forward Voltage: Typ. 9.5V (Min. 8.0V / Max. 11.0V) at IF=600mA
• Color Temperature: Typ. 4900K at IF=600mA
• Color Rendering Index: 93
• Max Forward Current: 600mA
• Max Power Dissipation: 6.6W
• Viewing Angle: 120° at IF=300mA
• Operating / Storage Temperature: -40°C to 85°C
• Junction Temperature: 115°C
• Thermal Resistance: 1.2°C/W (LED Chip - Thermistor)

Applications

• Machine Vision System
• Reference Light Source
• Optical Analyser

Please refer to the downloadable datasheet for maximum ratings, electrical and optical characteristics, typical characteristic curves, and outline/circuit information.

📄 Download Datasheet (PDF)

Ordering and sourcing information

Minimum order quantity

There is no minimum order quantity. This device can be produced and supplied from a single piece, so evaluation and design-in quantities are handled exactly like production orders. Tell us the quantity you need when you request a quote.

Lead time

Lead time depends on component availability at the factory. When the required parts are in stock, delivery is typically within one month of order. When the parts have to be produced first, expect approximately 1.5 to 2.5 months. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this emitter in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site — there is no need to order from Japan or import the device yourself. Every unit is built to order for your wavelength and configuration rather than pulled from shelf stock, so the delivery date is set by the lead times above, not by availability — tell us your target production date and we will work back from it. Technical questions on wavelength selection, thermal design, drive current, and optical integration are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the chip designer.

Pricing

This product is quoted individually, because pricing depends on quantity, wavelength selection, and configuration. Use the Request a Quote form on this page or email sales@terapowerled.com. For non-standard wavelengths, chip counts, or package dimensions, submit the Custom Order Form.
