Description

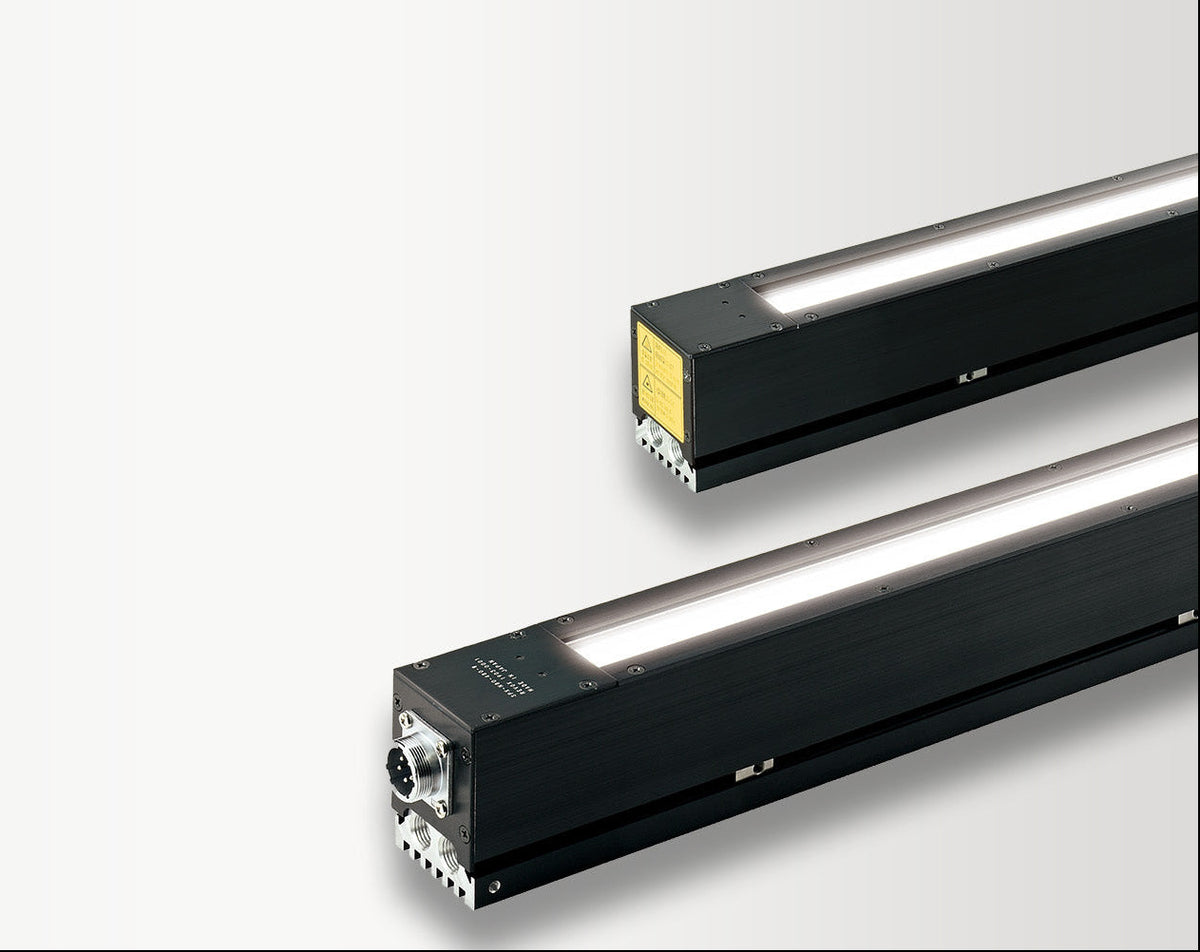

The REVOX SPX-N80 is the cost-focused LED line light in the SPX lineup, built to cover what visual inspection actually requires rather than every feature in the range. It reaches 400,000 lx, supports emitting lengths up to 3,960 mm, and runs on natural convection cooling even at the full 3,960 mm length with dimming set to 100%, so no fan or external cooling has to be designed into the station. An optional photodiode sensor fitted to both the light head and the power supply adds a constant illumination function, which monitors illuminance and compensates for drift so that inspection thresholds stay valid over long production runs. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: LED line light for line-scan inspection, cost-optimized model
• Maximum illuminance: 400,000 lx
• LED color: white, red, green, blue, amber
• Light-emitting length: 120-3,960 mm in 120 mm increments
• Effective light-emitting length: light-emitting length minus 160 mm, for models of 300 mm and longer
• Light-emitting area width: 26 mm
• Power consumption at maximum illuminance: 225 W/m
• Cooling: natural convection, including at 3,960 mm with dimming at 100%
• Dimensions excluding protrusions: L (light-emitting length + 120) x W 50 x H 70 mm
• Expected LED life: 50,000 hours for white, red, green, and amber, and 12,000 hours for blue, defined as the time until the initially set maximum luminous flux falls to 70% with a housing temperature between 0 and 50 °C; this is a reference value, not a warranty period
• Constant illumination function: optional, using photodiode sensors on the light head and power supply; not available with red LEDs
• Cable length with the dedicated relay cable: up to 30 m
• Operating environment: 5-40 °C, 20-80 %RH, no condensation
• Storage environment: 0-60 °C, 20-85 %RH, no condensation

System components

• Light head, ordered as SPX-N80-①-②-③: ① light-emitting length (0120 to 3960 in 120 mm increments), ② LED color (white = W, red = R, green = G, blue = B, amber = A), ③ constant illumination option (fitted = PD, omitted = blank). The PD option is not available with red LEDs
• Dedicated power supply CB-N600-48 or CB-N1000-48, selected by light-emitting length. CB-N600-48 is H 97 x D 240 x W 200 mm at approximately 3.2 kg with a maximum of 600 W, and CB-N1000-48 is H 106 x D 349 x W 258 mm at approximately 5.2 kg with a maximum of 1,000 W. Both accept AC 100-240 V 50/60 Hz ±10% and operate at 5-40 °C, 20-85 %RH
• Power supply model number CB-N①-48-②③-④: ① capacity (600 or 1000), ② dimming mode, selected as DC 0-5 V analog (A) or 8-bit digital (D), ③ LAN dimming option (L), ④ constant illumination option (PD). Manual panel dimming and RS-232C serial dimming are standard

Applications

• Visual inspection lines that need high illuminance at a controlled budget
• Long-length inspection up to 3,960 mm where fan cooling is undesirable
• Inspection with fixed thresholds over long runs, using the constant illumination option to hold illuminance steady
• Sheet, film, web, printed material, and panel inspection with line-scan cameras
• Multi-station lines where the premium SPX-TA and SPX-TB models are reserved for the critical stations

Specifications above are taken from the REVOX product documentation. Custom light source configurations are also available upon request, so tell us your inspection width, working distance, camera, and line speed, and we will confirm the exact model number, power supply, and cable configuration.

Ordering and sourcing information

How this product is configured

The SPX-N80 is supplied as a system rather than a single part number. Every order combines the light head, the matching CB-N power supply sized by light-emitting length, and a dedicated relay cable, with the dimming mode fixed at the time of order and the constant illumination and LAN dimming options added when the application needs them. Because length, LED color, and options are all specified up front, we build the configuration with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single light with its power supply and cable is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the configuration and on component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on light-emitting length, LED color, dimming mode, the constant illumination option, and power supply sizing are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the light-emitting length, LED color, power supply, cable length, and options. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
