Description

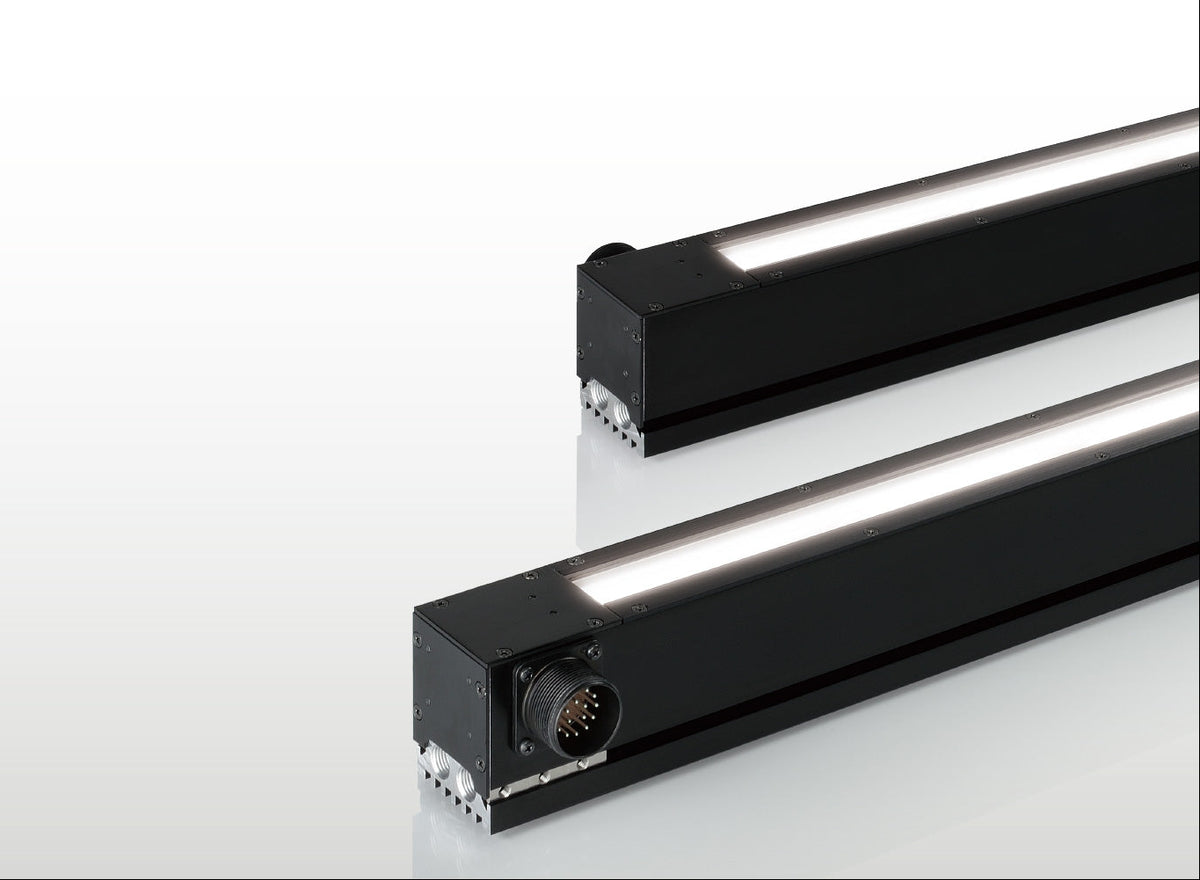

The REVOX SPX-TB-80 is a high-uniformity LED line light for line-scan inspection, designed around dimming response rather than raw brightness alone. It is the first in the series to add a high-speed dimming pulse function: the output rises in approximately 300 ns and the light can be pulsed at up to 200 kHz, so a single light can serve several optical setups in sequence instead of installing one light per imaging condition. The linearity block correction of the SPX-TA family is strengthened here with two selectable range modes, full range and partial range, which keeps uniformity usable at low output levels and lets one light cover workpieces from low to high reflectance. TeraPower LED is the authorized United States distributor of REVOX, Inc.

Specifications

• Product type: high-uniformity LED line light with high-speed dimming and pulse operation, for line-scan cameras
• LED color: white, red 1, red 2, green, blue, amber
• Light-emitting length: 120-3,960 mm in 120 mm increments
• Effective light-emitting length: light-emitting length minus 160 mm, for models of 360 mm and longer
• Light-emitting area width: 26 mm
• Maximum illuminance: 450,000 lx or higher, specified on a white LED basis
• Response performance: rise time approximately 300 ns (maximum), the fastest in the series to date; high-speed strobe mode control is supported, with a maximum pulse performance of 200 kHz
• Linearity correction: block correction with two range modes, full range and partial range; dimming is not perfectly linear at the two transition points published by REVOX
• Power consumption: 267 W/m at maximum illuminance
• Dimensions excluding protrusions: L (light-emitting length + 120) x W 50 x H 70 mm
• Expected LED life: 50,000 hours, defined as the time until the initially set maximum luminous flux falls to 70% with a housing temperature between 0 and 50 °C; this is a reference value, not a warranty period
• Cable length with the dedicated CBL-N-TB cable: up to 50 m for normal operation, up to 20 m for pulse lighting, which is the maximum length that still satisfies the pulse response specification
• Operating environment: 5-40 °C, 20-80 %RH, no condensation
• Storage environment: -10-60 °C, 20-85 %RH, no condensation
• Compliance: EU RoHS compliant; CE marking with safety standards EN61010-1 and EN62311 and EMC standards EN61000-4-2, EN61000-4-3, and EN61000-4-4

System components

• Light head, ordered as SPX-TB80-②-③-④-⑤-⑥-⑦: ① illuminance and dimming range class (450,000 lx or higher = 80), ② end connector orientation (front exit at both ends, standard = NN; straight exit = MS), ③ light-emitting length (0120 to 3960 in 120 mm increments), ④ LED color (white = WHT, red 1 = RED, red 2 = OSR, green = GRN, blue = BLU, amber = AMB), ⑤ housing surface screws (standard = N, stainless steel = S), ⑥ air purge fitting hole (none = NP; inlet on the side = SP, for NN ends only; inlet on the front = FP and inlet on the rear = RP, for MS ends only), ⑦ emitting surface cover (clear flat resin cover, t = 3 mm = CLR)
• Dedicated power supply CB-TB-600 or CB-TB-1200, selected by light-emitting length: 120-2,520 mm uses the 600 W supply (model code 0600) and 2,640-3,960 mm uses the 1,200 W supply (model code 1200). AC 100-240 V 50/60 Hz ±10%, H 177 x D 250 x W 140 mm, approximately 3.5 kg and 4.3 kg respectively, 3-pin AC inlet with an AC 125 V cord supplied as standard. Installation clearance is 100 mm at the front and 100 mm at the rear, and the operating environment is 5-40 °C, 20-80 %RH
• Power supply control inputs: manual dimming on the front panel, external voltage dimming at DC 0-5 V, digital dimming by external 8-bit (256 levels) or 10-bit (1,024 levels) input in partial range and 12-bit input in full range (3,072 levels as published by REVOX), ON/OFF pulse control by external signal with the optional LVDS differential driver (model code L), dimming lock by external signal for analog input only, RS-232C serial dimming, and Ethernet (LAN) dimming
• Power supply alarm outputs: LED open-circuit error, LED overtemperature error at a thermistor temperature of 120 °C, LED temperature warning at 108 °C, communication error, and power supply fault
• Dedicated cable CBL-*-TB, specified as standard type (N) or flex-resistant type (R) and by length from 5 m to 50 m in 5 m steps

Applications

• Line-scan inspection that needs several lighting conditions from one light head, using high-speed dimming between frames
• Strobe illumination synchronized to a line-scan camera on a fast-moving web or conveyor
• Inspection lines that mix low-reflectance and high-reflectance workpieces on the same station
• Film, glass, sheet, and web inspection where uniformity across a long emitting length is the limiting factor
• Applications that previously required two lights at different intensities, consolidated into one light to save space

Specifications above are taken from the REVOX product documentation. Custom light source configurations are also available upon request, so tell us your inspection width, working distance, camera, and line speed, and we will confirm the exact model number, power supply, and cable configuration.

Ordering and sourcing information

How this product is configured

The SPX-TB-80 is supplied as a system rather than a single part number. Every order combines the light head, the matching CB-TB power supply sized by light-emitting length, and a dedicated CBL-*-TB cable in the length and flex grade your installation needs, with the LVDS option added when the camera system drives the light by external pulse. Because the light-emitting length, LED color, end connector orientation, and purge and screw options are all specified at the time of order, we build the configuration with you before quoting.

Minimum order quantity

There is no minimum order quantity. A single light with its power supply and cable is handled exactly like a production order, so evaluation units are quoted the same way as line deployments.

Lead time

These illuminators are built to order at the factory, so lead time depends on the configuration and on component availability. Orders are shipped either direct from REVOX in Kanagawa, Japan, or through our Torrance, California office. We confirm the shipping route and the lead time with every quote, so the delivery schedule is fixed before you commit to an order.

U.S. purchasing and technical support

You can buy this illuminator in the United States from TeraPower LED, the authorized United States distributor of REVOX, Inc. You order from and are invoiced by a U.S. company in Torrance, California, and we handle export, import, customs clearance, and delivery to your site - there is no need to order from Japan or import the system yourself. Questions on light-emitting length, LED color, dimming control, pulse timing, and power supply sizing are answered in English from the United States, with direct access to the manufacturer's engineering team in Japan whenever a question needs the designer.

Pricing

This product is quoted individually, because pricing depends on the light-emitting length, LED color, power supply, cable length and grade, and options. Use the Request a Quote form on this page or email sales@terapowerled.com. For requirements outside the standard lineup, submit the Custom Order Form.
